Product Description

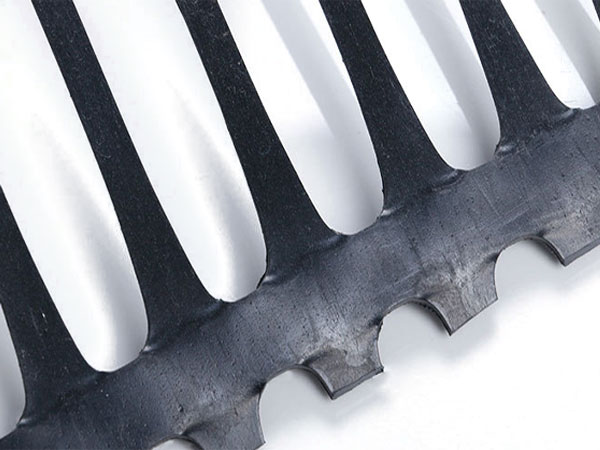

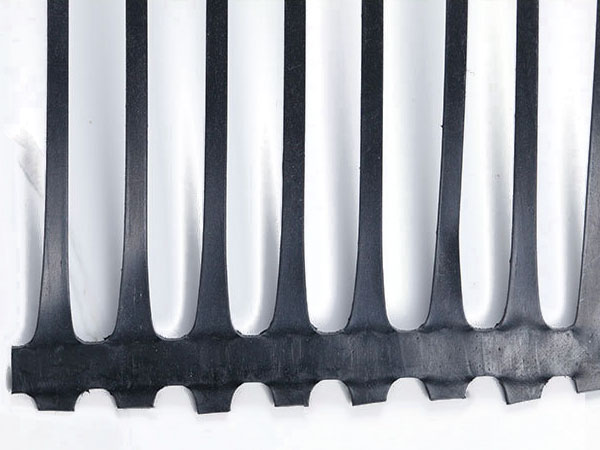

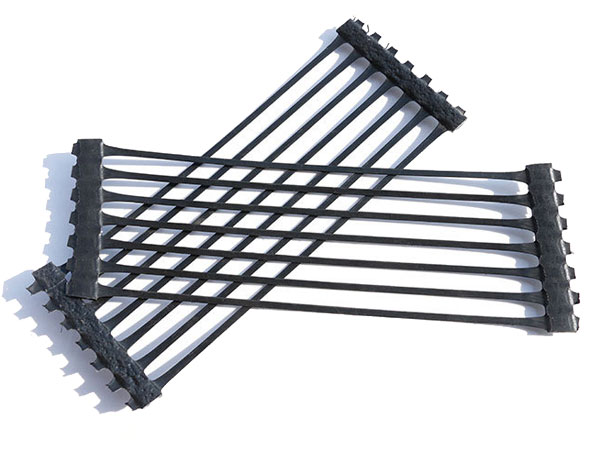

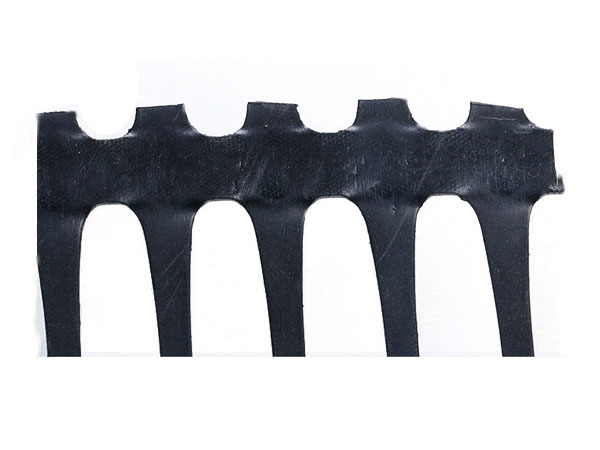

The uniaxial plastic geogrid is made of high polymer raw material by melting extrusion and rolling into a thin plate and then punch the regular holes, and then longitudinally stretched to form a uniform distribution, high strength elongated elliptic mesh integral structure. The stretching process makes the polymer in the material in a directional linear arrangement, so that the product has a very high tensile strength and tensile modulus, It is an ideal reinforcement material widely used in Chinese domestic engineering field to adapt to various environmental soils and build a interlock system that provides the soil with force bearing and diffusion.

Our company can provide the international leading level of high early (elongation of 2 ~ 5%) tensile strength and tensile modulus of such unidirectional plastic geogrid products.

Technical parameters

projects	specifications	TGDG25	TGDG35	TGDG50	TGDG80	TGDG120	TGDG160	TGDG200
Width （m）		1.0~3.0
Yield strength(KN/M≥)	PP	25	35	50	80	120	160	200
Yield strength(KN/M≥)	PE	25	35	50	80	120	160
Tensile strength at 2% elongation（KN/m）	PP	7	10	12	26	36	45	56
Tensile strength at 2% elongation（KN/m）	PE	6	7.5	12	21	33	47
Tensile strength at 5% elongation（KN/m）	PP	14	22	28	48	72	90	112
Tensile strength at 5% elongation（KN/m）	PE	12	21.5	23	40	65	93
Elongation%(%≤)	PP	10
Elongation%(%≤)	PE	11.5
Length per roll（m）	50,100
